VEP Verify opens to the user’s VEP web map system.

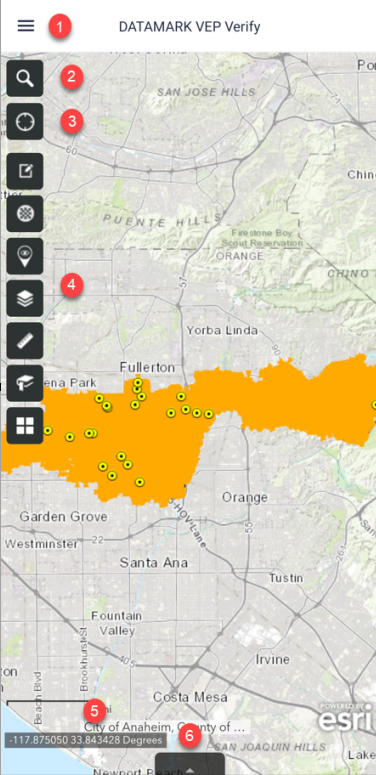

The initial map view consists of the following components:
ID | Description |
|---|---|
1 | Navigation Menu – Access Support Center, manage user profile, and logout. |
2 | Search – Search for an address, place, or latitude and longitude and zoom to it. |
3 | My Location – Navigate to the user’s current location on the map. Users will need to select enable location sharing on their mobile device to enable this functionality. |
4 | Widget Toolbar – Allows you to open Edit Tool, Review Tool, Observation Tool, Layer List, Measurement Tool, Bookmark Tool, and Basemap Gallery. |
5 | Cursor Coordinates – Displays the latitude and longitude of the center of the map. |
6 | Attribute Table View – Open or hide all attribute tables – includes Observations, Anomalies, Analysis, and all Feature Classes |
Zooming and Panning
Zooming in - place two fingers on the device screen and move them apart
Zooming out - Place two fingers on the device screen and move them together
Panning - Place one finger on the device screen and move in the direction you would like to pan
Attribute Table

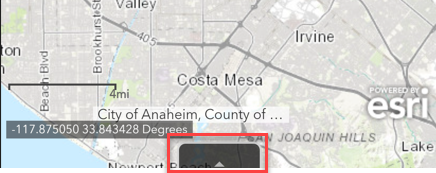

To open the attribute table – click on the black arrow at the bottom of the map interface

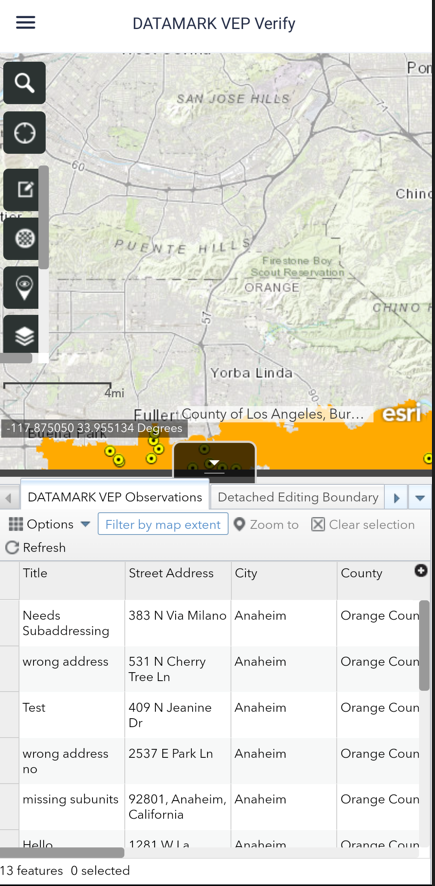

The attribute table shows all records within the feature classes and tables and hosted layers within the VEP instance.
The tools within the attribute table are:
Filter by map extent: When selected, only features within the map extent are populated in the table; when unselected, all features within the feature class are shown.
Zoom to: When a record is selected and Zoom To is clicked, the map will zoom to the selected feature.
Clear selection: When a record(s) is selected and Clear Selection is clicked, the records will be unselected in the table.
Refresh: The Refresh button may be clicked when removing or adding filters or panning/zooming around the map to refresh the map interface.
Options: provides various tools to interact with the attribute table.
Show selected records: Displays only selected records in the attribute table.
Show related records: Navigate through built relationship classes to the related table (will automatically navigate to new table tab).
Filter: Allows the user to create filters.
Show/Hide columns: Opens a dialog to show or hide columns in the attribute table
Export all to CSV: Exports all selected records in the table to a CSV
Filtering in the Attribute Table
Click Options in the Attribute Table

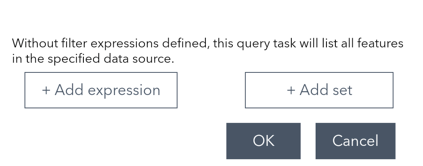

Click Filter to open a new window with the options to Add Expression or Add Set
Add Expression will allow the user to create 1 filter
Add Set will allow the user to create 2 simultaneous filters

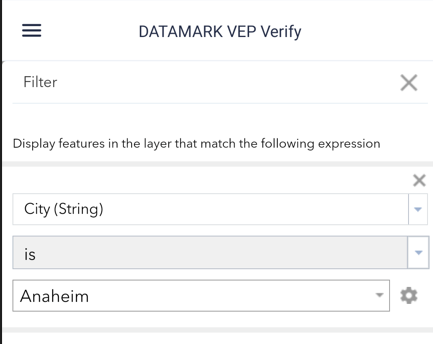

Once Add Expression is selected, three drop-downs will appear:
The first drop-down will always be the list of all field names in the feature class/table opened in the Attribute Table. Here the user selects the field they want to create a filter on.
The second drop-down is a list of operators to create the filter.
The third drop-down is set to Value by default.
To change this – click on the cogwheel to open the Settings for this field.
To filter based on a specific value, click the settings button, choose Value, and specify a value in the field.
To compare the value in one field to the value in another field, choose Field in the settings, click the drop-down arrow, and choose the field for the expression.
To filter based on a specific value in the field, choose Unique in the settings to retrieve a dynamic list of values from the layer.
To filter on multiple values in the field, choose Multiple in the settings to retrieve a dynamic list of values from the layer while using either the is any of or is none of the operators.
If Unique is selected, the user can start typing and the list will auto-populate with the options to choose from. If the specific option is not listed – the user will need to click Search More.
